Single-Wall Electric Heated Wax Melting Tank with Agitator
Bottom immersion heating, low-speed paddle agitation and thermostatic hold in one tank.
Overview

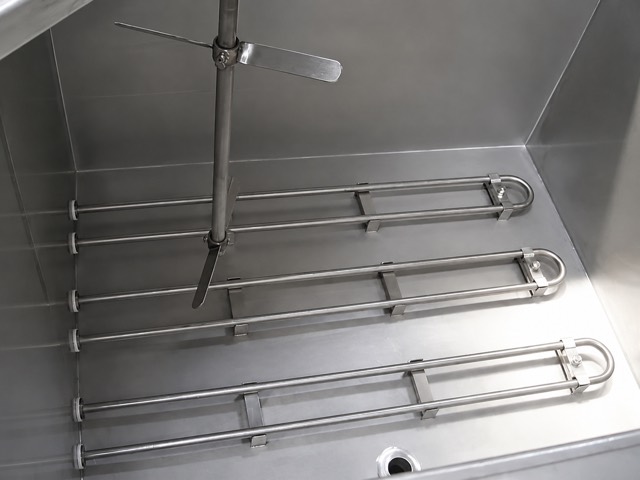

Not simply a heated drum. Three U-shaped immersion elements lie across the tank floor, a geared motor turns a two-level paddle agitator, and a digital controller holds the melt at a set point — so the machine melts, mixes, evens out and stores in one vessel.
The elements sit in the wax rather than under the shell, so heat goes straight into the charge. Standoff brackets keep every side of each tube wetted and stop a long element sagging as it cycles hot and cold. Melting starts as a pool on the floor and works upward.
That is why the agitator matters: without it the bottom runs hot while solid wax still sits on top, which is slow and risks local overheating. The paddle carries hot wax away from the elements and draws cooler wax down to them. It is deliberately low-speed and high-torque — a fast impeller would whip air into the wax and show up later as bubbles and surface defects in the candle.
Once the set point is reached the controller cycles the elements and the machine becomes a thermostatic holding tank, feeding the pouring line through a large-bore outlet set low on the side so the batch runs out almost completely.
Key features
- Three U-shaped immersion elements across the tank floor, on standoff brackets
- Geared motor driving a two-level paddle agitator — low speed, high torque
- Digital temperature controller: melts to a set point, then holds it

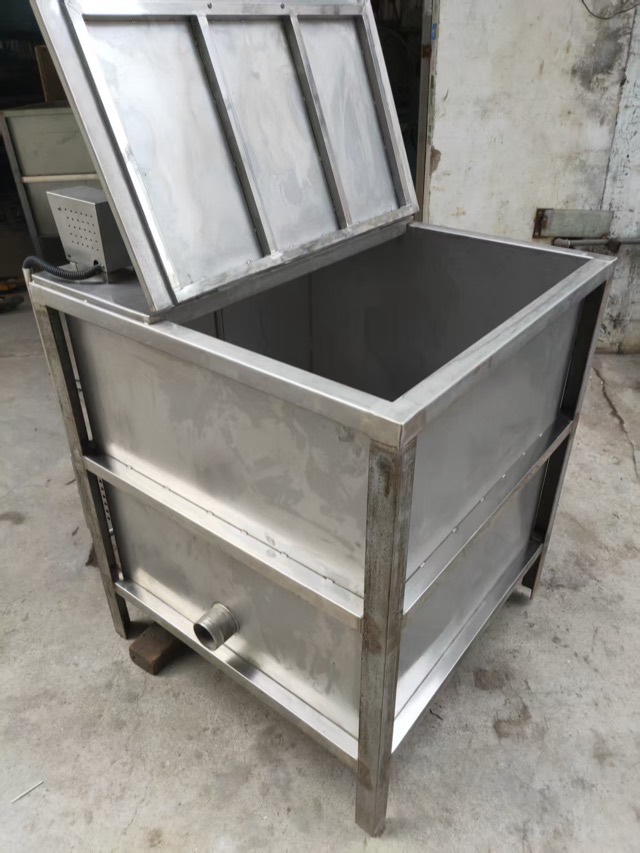

- Full-width hinged lid to charge the tank and keep the heat in
- Large-bore outlet low on the side wall to drain the batch almost completely
- 304 stainless steel wherever the wax touches; welded steel outer frame
- Suits soy, beeswax, coconut and paraffin wax
- Lid and agitator both standard on the unit shown; either can be omitted to order
- Tank volume, heating power, agitator speed and voltage built to order
Operating note. One operating rule matters more than the rest: never start the agitator into a solid block. Heat first, let a pool form around the blades, then start at low speed. Starting into set wax locks the paddles and overloads the motor, the gearbox and the shaft.
Specifications
| Model | ZD-U-I |
|---|---|
| Candle / batch size | Customised |
| Mould quantity | Customised |
| Machine dimensions | Customised |
| Power supply | Customised (single or three phase) |
| Material | Stainless steel / welded steel frame |
| OEM / ODM | Supported |
This machine is built to order, so the table states what is configurable rather than a fixed model. Send us your requirement and we will come back with the actual figures.
