See inside the machine

Build a whole factory to your output target, then take any single machine apart. Drag to orbit, scroll to zoom, click any part.

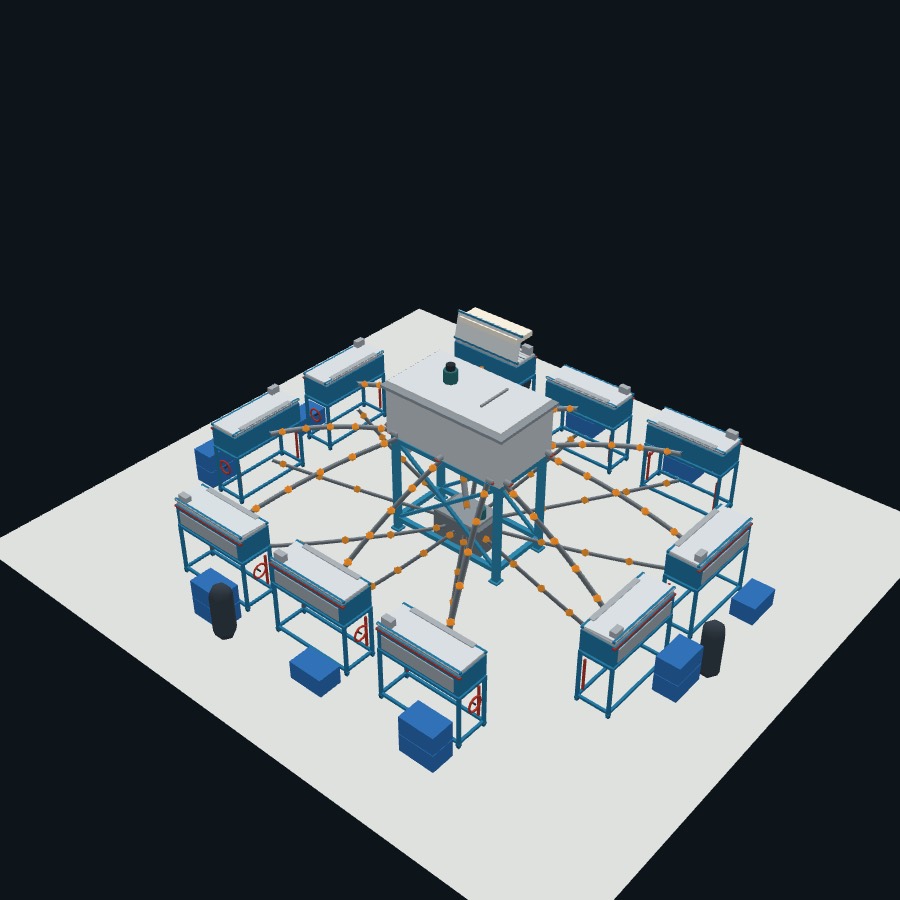

A whole factory, built to your output

Build a candle factory Set a daily output and the line builds itself: how many machines, how many people, which melting tank. Then run a shift and watch the count reach your number as the clock hits knock-off.

Or take a single machine apart:

Clamping wax tray candle machine

Stick / Household Candle Machine with Clamping Wax Tray The full production cycle: the previous batch finishes cooling, is cut free and lifted out, the clamping tray opened and the surplus wax cake cleared, handwheel ejection, ejector return with automatic wick feed, then pouring and circulated water cooling.

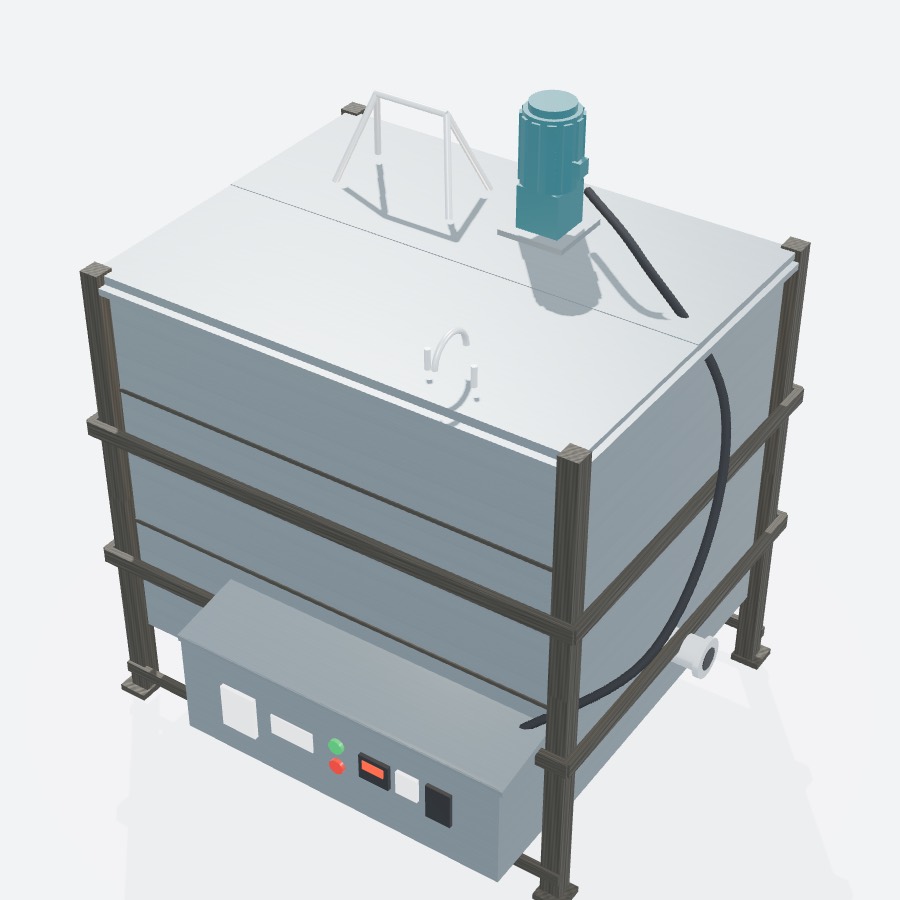

Electric heated wax melting tank

Single-Wall Electric Heated Wax Melting Tank with Agitator The melting cycle: three U-shaped immersion elements heat from the bottom, the lid opens, and the low-speed high-torque agitator only starts once there is liquid wax to stir — then holds temperature.

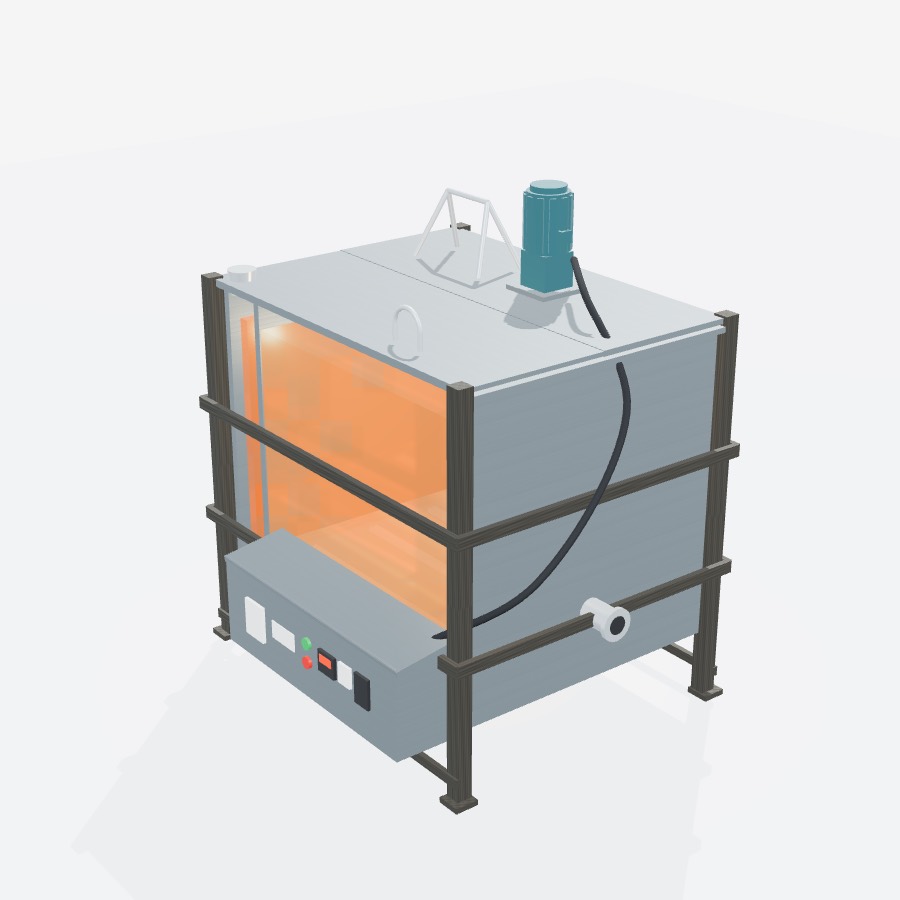

Double-wall oil jacket wax melter

Double-Wall Oil Jacket Wax Melter The same tank with one thing changed: the elements come out of the wax and go into a five-face oil jacket. Cut through it and count the faces — floor and four walls, welded shut at the top.

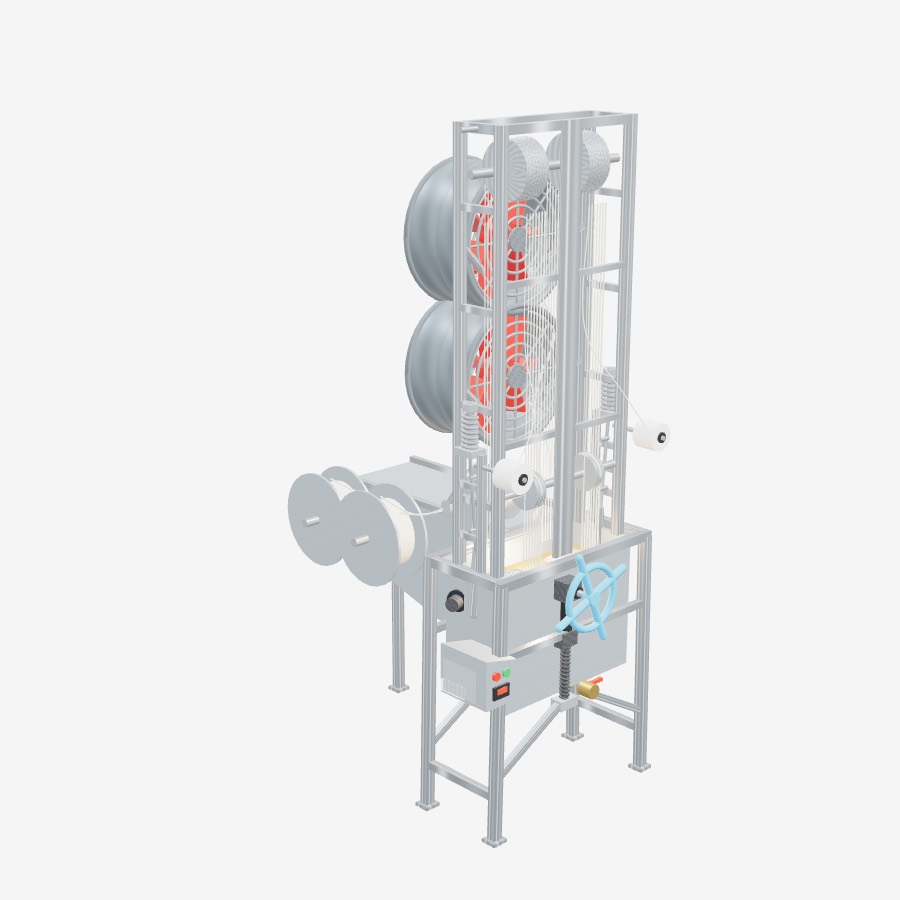

Dual-channel wick waxing machine

Dual-Channel Continuous Candle Wick Waxing Machine One cord through seven dip-and-cool passes: down into the wax, up through the fan draught, over the sheave into the next groove, and onto the take-up drum thicker than it went in — both channels running continuously.

Presentation models — accurate about layout, mechanism and production sequence, but not manufacturing CAD.

Want one tooled to your candle?

Send your candle dimensions and target output. We reply with a configuration and a price.
